I've got a teammate and friend at Ginkgo, Ray, and I'm sorry to say his condition is, well, it's not good.
...
Get it? Get it?! "Ray's condition, not good" -- or rather, "Race condition, not good"?! Well, fine. I'm a software engineer, not a comedian. (To be clear, Ray has nothing to do with this story aside from having a convenient name for the purposes of this post. Also, I believe he's in good health.)
I thought I'd share a little bit about a bug I encountered in our software recently. This turned out to be a race condition, hence that whole opening bit you've already suffered through. I'd seen race conditions in college, way back when, and in a theoretical sense, but this was my first time running into one in the wild.
First, some background. This was on a software portal website that we simply call "Portal." It is a React app paired with Apollo.
We've got quite a few applications here at Ginkgo. I was working on a feature to ensure that users who log into Portal are properly set up in some of our other Ginkgo apps.
Portal was already making a query GET_CURRENT_USER in a component CurrentUser shortly after user login. Great! I figured I could bootstrap onto GET_CURRENT_USER: in addition to resolving everything we already had, our backend for GET_CURRENT_USER would query those other Ginkgo apps to check if the user's account was properly set up there, and then return that information to the frontend, which could proceed accordingly. One tradeoff here is that the new GET_CURRENT_USER would take a little longer to resolve. However, this seemed like a one-time hit because Apollo caches its results, so we wouldn't have to query again the next time we needed the data.

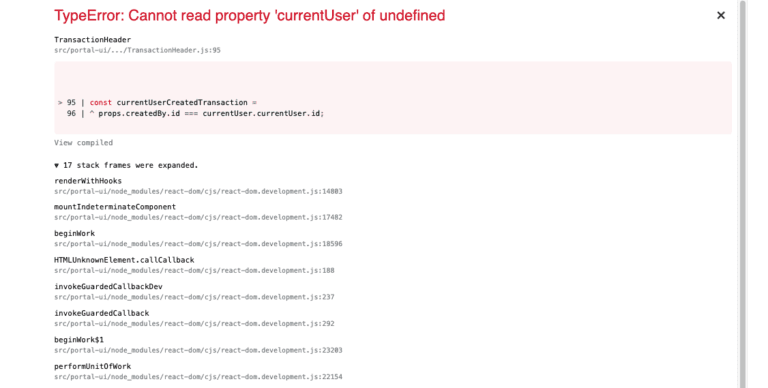

[caption id="attachment_4654" align="aligncenter" width="640"]
React White Screen of Death[/caption]
Time to put on my debugging hat. The React components that broke were called TransactionHeader and SequenceViewer. Both of these components made their own call to GET_CURRENT_USER, on the Transaction page and Design Unit page respectively. And since my commit changed GET_CURRENT_USER, that seemed to cinch it that these errors were my fault. But why? Sure, GET_CURRENT_USER was taking longer to resolve, but that shouldn't have mattered. There were three things that had me surprised and skeptical:
(1) Handling this sort of async data return is one of the things that React+Apollo is pretty good at as compared to the wild west web development days of 15 years ago.
(2) We use static type checkers like Flow to warn us of these issues in advance.
(3) Most importantly, weren't the results of GET_CURRENT_USER in the cache? CurrentUser is loaded immediately upon login to Portal, whereas TransactionHeader and SequenceViewer both take some navigating to get to. So shouldn't CurrentUser's call populate the cache well before we reach the pages that feature TransactionHeader and SequenceViewer? And if that's the case, then my changes to GET_CURRENT_USER should be immaterial.
Once (3) disappears, (1) and (2), which are admittedly rather handwavy, seem like much less of a sure thing.
After a tiny bit of digging, there was an obvious problem I could see in TransactionHeader and SequenceViewer: we made a query which returned a currentUser object, and then we had logic that relied on a property in that object, without actually checking to see if the query had returned yet and if the object was fully resolved. This is a very common mistake; I've made it myself plenty of times.
I downloaded a nifty Chrome extension, URL Throttler, to help me debug here. (Yes, Chrome Developer Tools allow you to institute throttling on your network requests, but not on a per-URL basis, which is what I needed in this case.) Sure enough, if I throttled the response time for the endpoint that GET_CURRENT_USER was hitting, even the version of GET_CURRENT_USER that preceded any of my commits, I could trigger the bug.
At this point, I ceased my analysis. I hadn't remotely gotten to the root cause of the issue yet, but I figured, "Okay, for some reason or another, it's important that GET_CURRENT_USER not take too long to resolve. That's why the code's been working up until now -- we've been getting lucky -- our query had been returning fast enough that we never ran into this lurking issue. (There's our race condition, by the way.) How about I change my original commit so that CurrentUser calls its own special query, GET_CURRENT_USER_WITH_EXTERNAL_ACCOUNTS, and the other components can continue making use of the original GET_CURRENT_USER. That should basically restore the status quo, and with any luck, we might still get lucky with the cache here."
I implemented this -- everything seemed to be working! The Design Unit page, which featured SequenceViewer, now loaded without a hitch, even if I throttled the endpoints that GET_CURRENT_USER_WITH_EXTERNAL_ACCOUNTS and GET_CURRENT_USER were hitting.
I thought that was the end of it. And yes, perhaps you realized immediately what I somehow overlooked: "what about the Transaction page, and TransactionHeader"? As a software developer, it's important to be methodical, but I'd neglected to test this case until the very end. (A savvier marketer than me might instead say, "I had carefully thought out a test plan that involved checking the Transaction page only after I'd thoroughly tested the Design Unit page and SequenceViewer"!) In any event, whether my hapless testing scheme was intentional or inadvertent, I was still out of luck: for some reason, my fix didn't work on TransactionHeader.
Having a sense of what was in Apollo's cache, and when, might have been illuminating. This was possible for me to accomplish (I must commend Apollo on how thorough their documentation is), but non-trivial. I hoped to find another way to understand what was going on.
It was about now that I stumbled upon one of the tabs in Chrome Developer Tools that I'd previously always glanced over, the Performance tab. Before this point, I'd been using the Network tab to get a sense of which query was getting fired off when. This was effective enough, but hardly a proper profiling solution.
Once I analyzed the page load via the Performance tab, I could see what was happening more clearly.
Case (A), the status quo, where all the components employ GET_CURRENT_USER -- the lurking race condition which yields the TypeError exists but never manifests itself.
Case (B), my original commit, which makes GET_CURRENT_USER take longer to return -- the TypeError consistently gets triggered.
Case (C), my workaround with both GET_CURRENT_USER_WITH_EXTERNAL_ACCOUNTS and GET_CURRENT_USER -- bizarrely, this consistently resolves the issue on the Design Unit page but just as consistently produces a TypeError on the Transaction page.
[caption id="attachment_4656" align="aligncenter" width="1829"]
A snippet of the render tree[/caption]
[caption id="attachment_4657" align="aligncenter" width="154"]
Component tree for CurrentUser[/caption]
[caption id="attachment_4658" align="aligncenter" width="181"]
Component tree for TransactionHeader[/caption]
The big question was whether Case (C) would show different things for the Design Unit page (i.e. SequenceViewer) than the Transaction page (i.e. TransactionHeader).
Let's start with the Transaction page. CurrentUser launched GET_CURRENT_USER_WITH_EXTERNAL_ACCOUNTS. Meanwhile, React rendered everything else, eventually getting to TransactionHeader. I could see that a new request GET_CURRENT_USER was being emitted, this time from TransactionHeader. Then, since React continued loading the remainder of the page before either query returned, the app would crash on a TypeError.
In the Design Unit page, CurrentUser launched GET_CURRENT_USER_WITH_EXTERNAL_ACCOUNTS. React proceeded along, eventually getting to SequenceViewer, and -- huh? No GET_CURRENT_USER call emitted by SequenceViewer? Why not?! I could see it in the code, right there! TransactionHeader produced a GET_CURRENT_USER call but SequenceViewer did not -- this smelled fishy, and called for further investigation.
Eventually, I decided to take a step back, and get more of a bird's-eye view. I discovered that higher up the render tree, SequenceViewer had an ancestor component called DesignUnitProfile -- which made _its own_ call to GET_CURRENT_USER. Moreover, DesignUnitProfile was set up such that by the time SequenceViewer rendered, DesignUnitProfile's GET_CURRENT_USER would probably have returned (though it wasn't a sure thing either ... a separate race condition, arguably).
That was it! SequenceViewer didn't run into the TypeError in Case (C) because, like in Case (A), it had a cached currentUser object it could consult before the error-triggering condition was evaluated. In contrast, TransactionHeader had no such cached object because of its different render tree. If we hadn't gotten lucky (unlucky?) with that additional call to GET_CURRENT_USER that was already in DesignUnitProfile, my workaround fix would have produced the same behavior on both the Design Unit page and the Transaction page -- which is to say, still a consistent TypeError, and no fix at all.
In narrating this whole experience, perhaps I should have mentioned or foreshadowed DesignUnitProfile earlier, given that it turned out to be important. DesignUnitProfile is the accomplice in a murder mystery who you don't even know exists until everything is revealed, so the revelation of his (its) involvement, upon which the plot hinges, hardly matters to you anyway.
But because I didn't find out about DesignUnitProfile myself until the very end, I wanted you to have the same experience. I even knew from the beginning that GET_CURRENT_USER showed up in more components than the error-causing two I mentioned at the beginning, but since the stack traces directed me to TransactionHeader and SequenceViewer, that was where I focused my attention, and yours.
Well, just imagine having spent several hours digging into this, and perhaps you can relate to how indignant I felt when I finally got the full picture of what was going on.
With this understanding in hand, we ended up implementing a fix, the details of which are beyond the scope of this post, but which allow CurrentUser to continue using a timely-returning GET_CURRENT_USER so that the query results maintain their advantageous early-loading into the cache.
The "Performance" tab on Chrome Developer Tools -- a wealth of information!
Race conditions are subtle. This one wasn't even so bad in that I eventually found a way to reliably reproduce the problem. I feel proud for eventually having gotten to the bottom of it.
Remember my offhand comment, "having a sense of what was in Apollo's cache, and when, might have been illuminating"? In hindsight, this was spot-on, especially for Case (C). However, the cost-benefit tradeoff of making this happen was probably substantial ... my bad luck.
Regarding my analysis of Case (C): having a detailed view of things was essential, but ultimately not revealing. Zooming out (literally: enlarging the time interval I was looking at in the profiler) led to the required clarity and complete understanding.
When I first started investigating all of this, I had a handful of open tabs covering some of the different cases, and a rough sense of what I wanted to look into. Pretty quickly, though, I was swimming in too many details to keep track of in my head. Writing down my findings, even provisional ones, even just offhand ideas, helped me get my thoughts in order and come up with a more systematic way to tackle the problem.
(Get it? “E-merged”? As in, “merged in new commits, electronically”? No, it doesn’t really work, does it. I was afraid not. Well, lightning doesn’t strike twice.)
(Feature photo by Jonathan Chng on Unsplash)
Posted by Ben Hyman
